Create VA

Create VA Availability

Currently Create VA API only available for these Acquirer's Virtual Accounts:

BNC
BNI
BTN

Process Flow

There are 2 main flow in SNAP Format Virtual Account:

VA API from acquirer.
Merchant could hit create VA API (service code 27) to create their virtual account number by acquirer. The number created then will be inquired by acquirer, merchant can get the payment notification. Currently the VA that use this API service are BNC and BNI

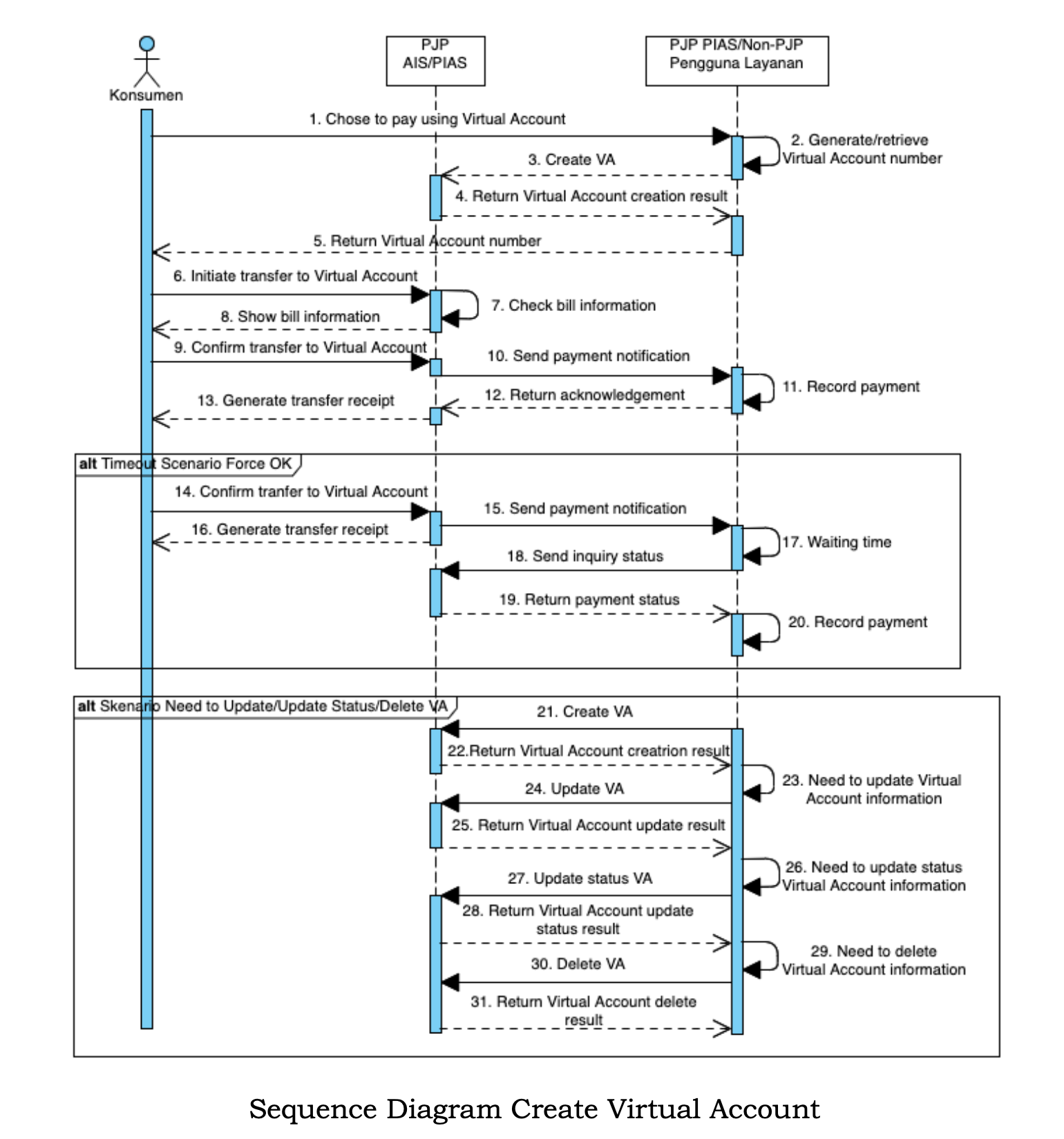

Virtual Account - Register Flow Process

Inquiry and Payment
Merchant can create their own virtual account number or get help from DOKU to create the number, and then DOKU will process the inquiry and payment. These virtual account within DOKU that use the inquiry and payment flow are: BNI, BTN, Danamon, Mandiri, Maybank, Permata

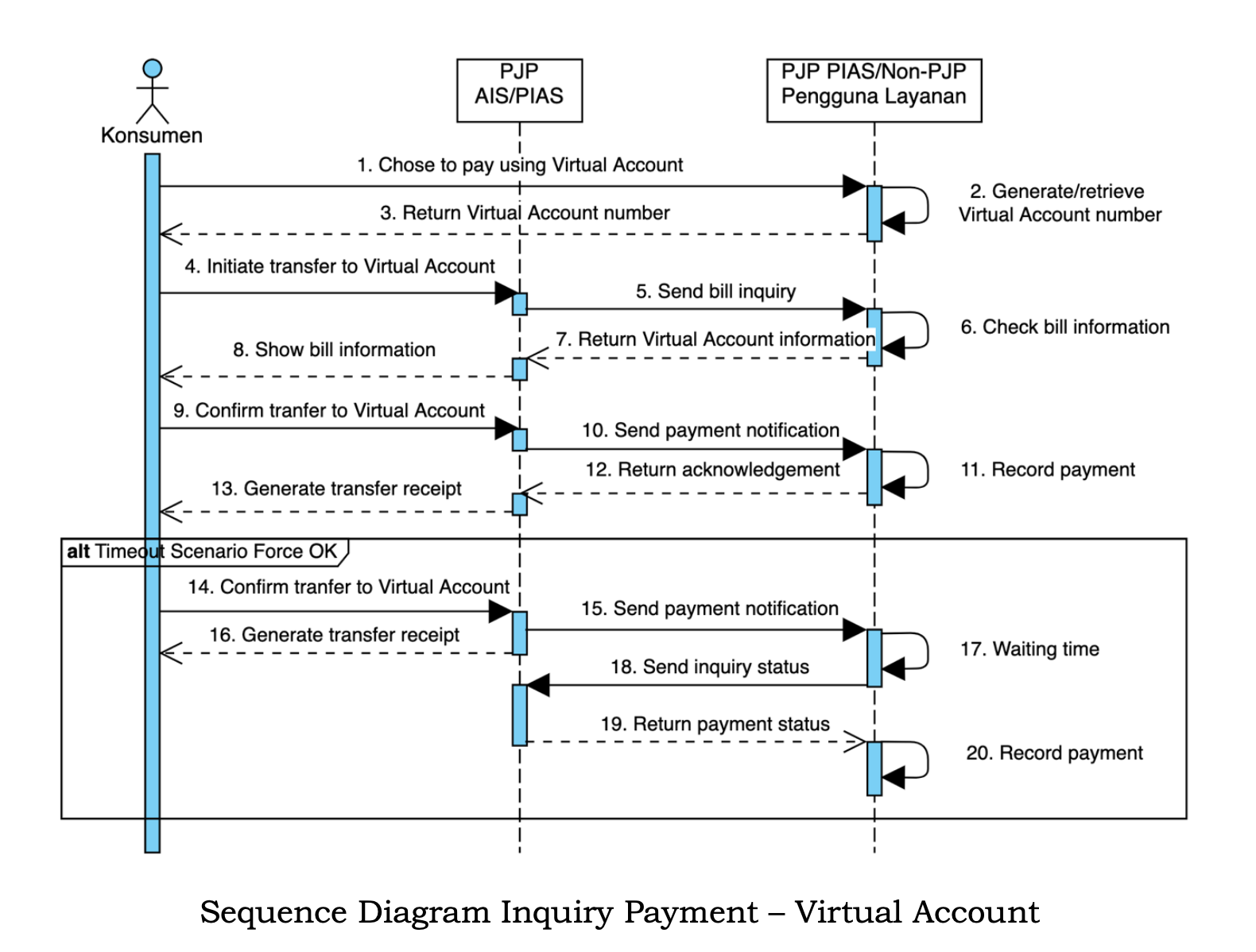

Virtual Account - Inquiry and Payment Flow Process

Integration Details

1. BNC VA

Here is the endpoint of BNC Virtual Account :

API Request

Type	Value
Service Code	27
HTTP Method	POST
Path	`/bi-snap-va/bnc/v1/transfe-va/create-va`

Here is the sample of request header to generate payment code:

X-TIMESTAMP: 2020-12-21T14:56:11+07:00
X-SIGNATURE: ieNOENDdN4MnectGytx5UvmOfASZ2oGWMCJ8gVqkw3tB98ofgY9cbxSeY4IYoYeoKs+0QP4h8BTBhemlfeXp1w==
X-PARTNER-ID: 82150823919040624621823174737537
X-EXTERNAL-ID: 41807553358950093184162180797837
CHANNEL-ID: VA008

Request Header Explanation

Parameter	Data Type	Type	Description
X-TIMESTAMP	`string`	Mandatory	Client's current local time with format : `YYYY-MM-DDTHH:mm:ssZD`
X-SIGNATURE	`string`	Mandatory	Represents signature of a request. Identify Signature Type used Value: 1. Symmetric Signature with Get Token (Default) `HMAC_SHA512 (clientSecret, stringToSign) dengan formula stringToSign = HTTPMethod +”:“+ EndpointUrl +":"+ AccessToken +":“+ Lowercase(HexEncode(SHA-256(minify(RequestBody))))+ ":“ + TimeStamp` Notes : 1. The full URL endpoint includes all parameters in the associated URL 2. For the `minify(Request Body)` parameter, if there is no Request Body then an empty string is used.
X-PARTNER-ID	`string`	Mandatory	Client Id for merchant that generated by DOKU
X-EXTERNAL-ID	`string`	Mandatory	Numeric String. Reference number that should be unique in the same day (Request Id)
CHANNEL-ID	`string(5)`	Mandatory	VA008

Here is the sample of request body:

{
   "partnerServiceId":"99341537",
   "customerNo":"00000000000000000000",
   "virtualAccountNo":"0000000000000000000000000000",
   "virtualAccountName":"Jessica Tessalonika",
   "virtualAccountEmail":"jessica@email.com",
   "virtualAccountPhone":"6281828384858",
   "trxId":"INV-20220916-0002",
   "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
   },
   "billDetails":[
      {
         "billCode":"01",
         "billNo":"123456789012345601",
         "billName":"Bill A for Jan",
         "billShortName":"Bill A",
         "billDescription":{
            "english":"Maintenance",
            "indonesia":"Pemeliharaan"
         },
         "billSubCompany":"00001",
         "billAmount":{
            "value":"10000.00",
            "currency":"IDR"
         },
         "additionalInfo":{

         }
      }
   ],
   "freeTexts":[
      {
         "english":"Free text",
         "indonesia":"Tulisan bebas"
      }
   ],
   "virtualAccountTrxType":"1",
   "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
   },
   "expiredDate":"2023-01-01T10:55:00+07:00"
}

API Response

After hitting the above API request, DOKU will give the response.

Here is the sample of response header :

X-TIMESTAMP: 2020-12-21T14:36:19+07:00

Response Header Explanation

Parameter	Data Type	Type	Description
X-Timestamp	`string`	Mandatory	Client's current local time with format `YYYY-MM-DDTHH:mm:ssZ`

Type	Value
HTTP Status	200
Result	SUCCESS

Here is the sample of response body:

{
  "responseCode":"2002700",
  "responseMessage":"Successful",
  "virtualAccountData":{
    "partnerServiceId":"90341537",
    "customerNo":"0000000000112",
    "virtualAccountNo":"903415370000000000112",
    "virtualAccountName":"Jessica Tessalonika",
    "virtualAccountEmail":"jessica@email.com",
    "virtualAccountPhone":"6281828384858",
    "trxId":"INV-20220916-0002",
    "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
    },
    "billDetails":[
      {
        "billCode":"01",
        "billNo":"123456789012345601",
        "billName":"Bill A for Jan",
        "billShortName":"Bill A",
        "billDescription":{
          "english":"Maintenance",
          "indonesia":"Pemeliharaan"
        },
        "billSubCompany":"00001",
        "billAmount":{
          "value":"10000.00",
          "currency":"IDR"
        },
        "additionalInfo":{

        }
      }
    ],
    "freeTexts":[
      {
        "english":"Free text",
        "indonesia":"Tulisan bebas"
      }
    ],
    "virtualAccountTrxType":"1",
    "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
    },
    "expiredDate":"2023-01-01T10:55:00+07:00",
    "additionalInfo":{
    },
      "howToPayInfo":{
        "howToPayPage":"https://sandbox.doku.com/bca-virtual-acccount/v1/how-to-pay-page/0008889912345678901234567890",
        "howToPayApi":"https://api-sandbox.doku.com/bca-virtual-acccount/v1/how-to-pay-api/0008889912345678901234567890"
      }
  }
}

Another response, for failed scenario

Type	Value
HTTP Status	404
Result	FAILED

Here is response sample for failed scenario

{
   "responseCode":"4042716",
   "responseMessage":"Partner Not Found",
  "virtualAccountData":{
    "partnerServiceId":"90341537",
    "customerNo":"0000000000112",
    "virtualAccountNo":"903415370000000000112",
    "virtualAccountName":"Jokul Doe 003",
    "virtualAccountEmail":"jokul@email.com",
    "virtualAccountPhone":"6281828384858",
    "trxId":"INV-20220916-0002",
    "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
    },
    "billDetails":[
      {
        "billCode":"01",
        "billNo":"123456789012345601",
        "billName":"Bill A for Jan",
        "billShortName":"Bill A",
        "billDescription":{
          "english":"Maintenance",
          "indonesia":"Pemeliharaan"
        },
        "billSubCompany":"00001",
        "billAmount":{
          "value":"10000.00",
          "currency":"IDR"
        },
        "additionalInfo":{

        }
      }
    ],
    "freeTexts":[
      {
        "english":"Free text",
        "indonesia":"Tulisan bebas"
      }
    ],
    "virtualAccountTrxType":"1",
    "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
    },
    "expiredDate":"2023-01-01T10:55:00+07:00"
      "additionalInfo":{
         "settlement":[
            {
               "bank_account_settlement_id":"SBA-0001-123123123",
               "value":10,
               "type":"PERCENTAGE"
            },{
               "bank_account_settlement_id":"SBS-0002-321321321",
               "value":90,
               "type":"PERCENTAGE"
            }
         ]
      }
   }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`responseCode`	`string(7)`	Mandatory	Response Code : `HTTP status code + service code + case code`
`responseMessage`	`string(150)`	Mandatory	Response Description
`virtualAccountData.partnerServiceId`	`string(8)`	Mandatory	similar to company code, 8 digit left padding space
`virtualAccountData.customerNo`	String (20)	Optional	Unique number (up to 20 digits). partnerServiceId + customerNo = virtualAccountNo
`virtualAccountData.virtualAccountNo`	String (28)	Optional	partnerServiceId (8 digit left padding 0) + customerNo up to 20 digits).
`virtualAccountData.virtualAccountName`	`string(255)`	Mandatory	Customer Name
`virtualAccountData.virtualAccountEmail`	`string(255)`	Optional	Customer Email
`virtualAccountData.virtualAccountPhone`	`string(30)`	Optional	Customer Phone, Format: 62xxxxxxxxx xxxx
`virtualAccountData.trxId`	`string(64)`	Mandatory	Transaction ID in Partner system
`virtualAccountData.totalAmount.value`	`string(8)`	Optional	Transaction Amount. Total Amount with 2 decimal, format ISO 4217
`virtualAccountData.totalAmount.Currency`	`string(3)`	Optional	Currency. Example: IDR
`virtualAccountData.howToPayInfo.howToPayPage`	ANS(256)	Optional	Step by step that will be used by customer for how to doing a payment
`virtualAccountData.howToPayInfo.howToPayApi`	ANS(256)	Optional	Step by step that will be used by customer for how to doing a payment
`billDetails.billCode`	`string(2)`	Optional	Bill code for Customer choose. Example : 01
`billDetails.billNo`	`string(18)`	Optional	Bill number from Partner
`billDetails.billName`	`string(20)`	Optional	Bill Name
`billDetails.billShortName`	`string(10)`	Optional	Bill Name to shown to
`billDetails.billDescription.english`	`string(18)`	Optional	Bill Description in English
`billDetails.billDescription.indonesia`	`string(18)`	Optional	Bill Description in Bahasa Indonesia
`billDetails.billSubCompany`	string(5)	Optional	Partner’s product code
`billDetails.billAmount.value`	`String (16.2)(ISO 4217)`	Optional	Transaction Amount. Nominal inputted by Customer with 2 decimal
`billDetails.billAmount.currency`	`string(3)`	Optional	Currency
`billDetails.additionalInfo`	`Object(Unlimited)`	Optional	Additional Information for custom use for each bill
`freeTexts.english`	`string(32)`	Optional	This parameter will be shown in Channel
`freeTexts.indonesia`	`string(32)`	Optional	This parameter will be shown in Channel
`virtualAccountTrxType`	`string(1)`	Optional	Type of Virtual Account : `C` : closed payment `O` : open payment
`feeAmount.value`	`String (16.2)`	Optional	Format ISO 4217
`feeAmount.currency`	`string(3)`	Optional	Example : IDR
`expiredDate`	`string(25)`	Optional	Expiration date for Virtual Account. ISO-8601. Example: 2020-12- 31T23:59:59-07:00
`additionalInfo`	`Object`	Optional	Additional Information for custom use

2. BNI VA

Here is the endpoint of BNI Virtual Account :

API Request

Type	Value
Service Code	27
HTTP Method	POST
Path	`/bi-snap-va/bni/v1/transfer-va/create-va`

Here is the sample of request header to generate payment code:

X-TIMESTAMP: 2020-12-21T14:56:11+07:00
X-SIGNATURE: ieNOENDdN4MnectGytx5UvmOfASZ2oGWMCJ8gVqkw3tB98ofgY9cbxSeY4IYoYeoKs+0QP4h8BTBhemlfeXp1w==
X-PARTNER-ID: 82150823919040624621823174737537
X-EXTERNAL-ID: 41807553358950093184162180797837
CHANNEL-ID: VA004

Request Header Explanation

Parameter	Data Type	Type	Description
X-TIMESTAMP	`string`	Mandatory	Client's current local time with format : `YYYY-MM-DDTHH:mm:ssZD`
X-SIGNATURE	`string`	Mandatory	Represents signature of a request. Identify Signature Type used Value: 1. Symmetric Signature with Get Token (Default) `HMAC_SHA512 (clientSecret, stringToSign) dengan formula stringToSign = HTTPMethod +”:“+ EndpointUrl +":"+ AccessToken +":“+ Lowercase(HexEncode(SHA-256(minify(RequestBody))))+ ":“ + TimeStamp` Notes : 1. The full URL endpoint includes all parameters in the associated URL 2. For the `minify(Request Body)` parameter, if there is no Request Body then an empty string is used.
X-PARTNER-ID	`string`	Mandatory	Client Id for merchant that generated by DOKU
X-EXTERNAL-ID	`string`	Mandatory	Numeric String. Reference number that should be unique in the same day (Request Id)
CHANNEL-ID	`string(5)`	Mandatory	VA004

Here is the sample of request body:

{
  "partnerServiceId": "    8412",
  "customerNo": "000000000001",
  "virtualAccountNo": "    8412000000000001",
  "virtualAccountName": "Jessica Tessalonika",
  "virtualAccountEmail": "jessica@email.com",
  "virtualAccountPhone": "6281828384700",
  "trxId": "QA-001",
  "totalAmount": {
  "value" : "100000.00",
  "currency": "IDR"
  },
  "additionalInfo": {

  },
  "virtualAccountTrxType": "c",
  "expiredDate": "2022-01-01T23:59:59-07:00"
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`partnerServiceId`	`string(8)`	Mandatory	This parameter is similar to company code/BIN, 8 digit left padding space.
`customerNo`	`string(20)`	Mandatory	Unique number (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
`virtualAccountNo`	`string(28)`	Mandatory	partnerServiceId (8 digit left padding 0) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
`virtualAccountName`	`string(255)`	Mandatory	Customer Name
`virtualAccountEmail`	`string(255)`	Optional	Customer Email
`virtualAccountPhone`	`string(30)`	Optional	Customer Phone, Format: 62xxxxxxxxx xxxx
`trxId`	`string(64)`	Mandatory	Transaction ID in Partner system
`totalAmount.value`	`string(8)`	Optional	Transaction Amount. Total Amount with 2 decimal, format ISO 4217
`totalAmount.Currency`	`string(3)`	Optional	Currency. Example: IDR
`virtualAccountTrxType`	`string(1)`	Optional	Type of Virtual Account : `C` : closed payment `O` : open payment
`expiredDate`	`string(25)`	Optional	Expiration date for Virtual Account. ISO-8601. Example: 2020-12- 31T23:59:59-07:00
`additionalInfo`	`Object`	Optional	Additional Information for custom use

API Response

After hitting the above API request, DOKU will give the response.

Here is the sample of response header :

X-TIMESTAMP: 2020-12-21T14:36:19+07:00

Response Header Explanation

Parameter	Data Type	Type	Description
X-Timestamp	`string`	Mandatory	Client's current local time with format `YYYY-MM-DDTHH:mm:ssZ`

Type	Value
HTTP Status	200
Result	SUCCESS

Here is the sample of response body for success scenario :

{
  "responseCode":"2002700",
  "responseMessage":"Successful",
  "virtualAccountData":{
    "partnerServiceId":"    8412",
    "customerNo":"000000000001",
    "virtualAccountNo":"    8412000000000001",
    "virtualAccountName":"Jessica Tessalonika",
    "virtualAccountEmail":"jessica@email.com",
    "virtualAccountPhone":"6281828384858",
    "trxId":"INV-20220916-0002",
    "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
    },
    "virtualAccountTrxType":"1",
    "expiredDate":"2023-01-01T10:55:00+07:00",
    "additionalInfo":{
    },
      "howToPayInfo":{
        "howToPayPage":"https://sandbox.doku.com/bni-virtual-acccount/v1/how-to-pay-page/0008889912345678901234567890",
        "howToPayApi":"https://api-sandbox.doku.com/bni-virtual-acccount/v1/how-to-pay-api/0008889912345678901234567890"
      }
  }
}

Type	Value
HTTP Status	404
Result	FAILED

Here is the sample of response body for failed scenario :

{
   "responseCode":"4042716",
   "responseMessage":"Partner Not Found",
  "virtualAccountData":{
    "partnerServiceId":"    8412",
    "customerNo":"000000000001",
    "virtualAccountNo":"   8412000000000001",
    "virtualAccountName":"Jessica Tessalonika",
    "virtualAccountEmail":"jessica@email.com",
    "virtualAccountPhone":"6281828384858",
    "trxId":"INV-20220916-0002",
    "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
    },
    "virtualAccountTrxType":"1",
    "expiredDate":"2023-01-01T10:55:00+07:00"
      "additionalInfo":{
         "settlement":[
            {
               "bank_account_settlement_id":"SBA-0001-123123123",
               "value":10,
               "type":"PERCENTAGE"
            },{
               "bank_account_settlement_id":"SBS-0002-321321321",
               "value":90,
               "type":"PERCENTAGE"
            }
         ]
      }
   }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`responseCode`	`string(7)`	Mandatory	Response Code : `HTTP status code + service code + case code`
`responseMessage`	`string(150)`	Mandatory	Response Description
`virtualAccountData.partnerServiceId`	`string(8)`	Mandatory	similar to company code, 8 digit left padding space
`virtualAccountData.customerNo`	String (20)	Optional	Unique number (up to 20 digits). partnerServiceId + customerNo = virtualAccountNo
`virtualAccountData.virtualAccountNo`	String (28)	Optional	partnerServiceId (8 digit left padding 0) + customerNo up to 20 digits).
`virtualAccountData.virtualAccountName`	`string(255)`	Mandatory	Customer Name
`virtualAccountData.virtualAccountEmail`	`string(255)`	Optional	Customer Email
`virtualAccountData.virtualAccountPhone`	`string(30)`	Optional	Customer Phone, Format: 62xxxxxxxxx xxxx
`virtualAccountData.trxId`	`string(64)`	Mandatory	Transaction ID in Partner system
`virtualAccountData.totalAmount.value`	`string(8)`	Optional	Transaction Amount. Total Amount with 2 decimal, format ISO 4217
`virtualAccountData.totalAmount.Currency`	`string(3)`	Optional	Currency. Example: IDR
`virtualAccountData.howToPayInfo.howToPayPage`	ANS(256)	Optional	Step by step that will be used by customer for how to doing a payment
`virtualAccountData.howToPayInfo.howToPayApi`	ANS(256)	Optional	Step by step that will be used by customer for how to doing a payment
`virtualAccountTrxType`	`string(1)`	Optional	Type of Virtual Account : `C` : closed payment `O` : open payment
`expiredDate`	`string(25)`	Optional	Expiration date for Virtual Account. ISO-8601. Example: 2020-12- 31T23:59:59-07:00
`additionalInfo`	`Object`	Optional	Additional Information for custom use

3. BTN VA

info

For BTN, virtualAccountTrxType is defined based on the BIN/ partnerServiceId.
Each partnerServiceId will be defined whether it will be number for closed or open payment.

Here is the endpoint of BTN Virtual Account :

API Request

BTN

Type	Value
Service Code	27
HTTP Method	POST
Path	/bi-snap-va/btn/v1/transfer-va/create-va

Here is the sample of request header to generate payment code:

X-TIMESTAMP: 2020-12-21T14:56:11+07:00
X-SIGNATURE: ieNOENDdN4MnectGytx5UvmOfASZ2oGWMCJ8gVqkw3tB98ofgY9cbxSeY4IYoYeoKs+0QP4h8BTBhemlfeXp1w==
X-PARTNER-ID: 82150823919040624621823174737537
X-EXTERNAL-ID: 41807553358950093184162180797837
Authorization: bearer DUMMY
Content type: application/ json
CHANNEL-ID: VA009

Request Header Explanation

Parameter	Data Type	Type	Description
X-TIMESTAMP	`string`	Mandatory	Client's current local time with format : `YYYY-MM-DDTHH:mm:ssZD`
X-SIGNATURE	`string`	Mandatory	Represents signature of a request. Identify Signature Type used Value: 1. Symmetric Signature with Get Token (Default) `HMAC_SHA512 (clientSecret, stringToSign) dengan formula stringToSign = HTTPMethod +”:“+ EndpointUrl +":"+ AccessToken +":“+ Lowercase(HexEncode(SHA-256(minify(RequestBody))))+ ":“ + TimeStamp` Notes : 1. The full URL endpoint includes all parameters in the associated URL 2. For the `minify(Request Body)` parameter, if there is no Request Body then an empty string is used.
X-PARTNER-ID	`string`	Mandatory	Client Id for merchant that generated by DOKU
X-EXTERNAL-ID	`string`	Mandatory	Numeric String. Reference number that should be unique in the same day (Request Id)
Authorization	`string`	Mandatory	Represents access_token of a request; String starts with keyword “Bearer ” followed by access_token (e.g. Bearer eyJraWQiOi...Jzc29zIiwiY)
Content type	`string`	Mandatory	String represents indicate the media type of the resource (e.g. application/json)
CHANNEL-ID	`string(5)`	Mandatory	VA009

Here is the sample of request body:

DGPC - Fix Bill / Closed Payment
DGPC - No Bill / Open Payment

{
   "partnerServiceId":"95962001",
   "customerNo":"00000000001",
   "virtualAccountNo":"95962001000000001",
   "virtualAccountName":"Jessica Tessalonika",
   "virtualAccountEmail":"jessica@email.com",
   "virtualAccountPhone":"6281828384858",
   "trxId":"INV-20220916-0002",
   "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
   },
   "billDetails":[
      {
         "billCode":"01",
         "billNo":"123456789012345601",
         "billName":"Bill A for Jan",
         "billShortName":"Bill A",
         "billDescription":{
            "english":"Maintenance",
            "indonesia":"Pemeliharaan"
         },
         "billSubCompany":"00001",
         "billAmount":{
            "value":"10000.00",
            "currency":"IDR"
         },
         "additionalInfo":{

         }
      }
   ],
   "freeTexts":[
      {
         "english":"Free text",
         "indonesia":"Tulisan bebas"
      }
   ],
   "virtualAccountTrxType":"1",
   "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
   },
   "expiredDate":"2023-01-01T10:55:00+07:00"
}

{
   "partnerServiceId":"95962002",
   "customerNo":"00000000001",
   "virtualAccountNo":"959620020000000001",
   "virtualAccountName":"Jessica Tessalonika",
   "virtualAccountEmail":"jessica@email.com",
   "virtualAccountPhone":"6281828384858",
   "trxId":"INV-20220916-0002",
   "totalAmount":{
      "value":"0.00",
      "currency":"IDR"
   },
   "billDetails":[
      {
         "billCode":"01",
         "billNo":"123456789012345601",
         "billName":"Bill A for Jan",
         "billShortName":"Bill A",
         "billDescription":{
            "english":"Maintenance",
            "indonesia":"Pemeliharaan"
         },
         "billSubCompany":"00001",
         "billAmount":{
            "value":"10000.00",
            "currency":"IDR"
         },
         "additionalInfo":{

         }
      }
   ],
   "freeTexts":[
      {
         "english":"Free text",
         "indonesia":"Tulisan bebas"
      }
   ],
   "virtualAccountTrxType":"1",
   "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
   },
   "expiredDate":"2023-01-01T10:55:00+07:00"
}

Request Body Explanation

Parameter	Type	Mandatory	Description
`partnerServiceId`	`string(8)`	Mandatory	This parameter is similar to company code/BIN, 8 digit left padding space.
`customerNo`	`string(20)`	Mandatory	Unique number (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
`virtualAccountNo`	`string(28)`	Mandatory	partnerServiceId (8 digit left padding 0) + customerNo (up to 20 digits). partnerServiceId + customerNo or virtualAccountNo
`virtualAccountName`	`string(255)`	Mandatory	Customer Name
`virtualAccountEmail`	`string(255)`	Optional	Customer Email
`virtualAccountPhone`	`string(30)`	Optional	Customer Phone, Format: 62xxxxxxxxx xxxx
`trxId`	`string(64)`	Mandatory	Transaction ID in Partner system
`totalAmount.value`	`string(8)`	Optional	Transaction Amount. Total Amount with 2 decimal, format ISO 4217
`totalAmount.Currency`	`string(3)`	Optional	Currency. Example: IDR
`billDetails.billCode`	`string(2)`	Optional	Bill code for Customer choose. Example : 01
`billDetails.billNo`	`string(18)`	Optional	Bill number from Partner
`billDetails.billName`	`string(20)`	Optional	Bill Name
`billDetails.billShortName`	`string(10)`	Optional	Bill Name to shown to
`billDetails.billDescription.english`	`string(18)`	Optional	Bill Description in English
`billDetails.billDescription.indonesia`	`string(18)`	Optional	Bill Description in Bahasa Indonesia
`billDetails.billSubCompany`	string(5)	Optional	Partner’s product code
`billDetails.billAmount.value`	`String (16.2)(ISO 4217)`	Optional	Transaction Amount. Nominal inputted by Customer with 2 decimal
`billDetails.billAmount.currency`	`string(3)`	Optional	Currency
`billDetails.additionalInfo`	`Object(Unlimited)`	Optional	Additional Information for custom use for each bill
`freeTexts.english`	`string(32)`	Optional	This parameter will be shown in Channel
`freeTexts.indonesia`	`string(32)`	Optional	This parameter will be shown in Channel
`virtualAccountTrxType`	`string(1)`	Conditional	Type of Virtual Account : `1` : closed payment `2` : open payment. Default : Closed Payment, conditional if using Open Payment
`feeAmount.value`	`String (16.2)`	Optional	Format ISO 4217
`feeAmount.currency`	`string(3)`	Optional	Example : IDR
`expiredDate`	`string(25)`	Optional	Expiration date for Virtual Account. ISO-8601. Example: 2020-12- 31T23:59:59-07:00
`additionalInfo`	`Object`	Optional	Additional Information for custom use

API Response

After hitting the above API request, DOKU will give the response.

Here is the sample of response header :

X-TIMESTAMP: 2020-12-21T14:36:19+07:00

Response Header Explanation

Parameter	Data Type	Type	Description
X-Timestamp	`string`	Mandatory	Client's current local time with format `YYYY-MM-DDTHH:mm:ssZ`

Type	Value
HTTP Status	200
Result	SUCCESS

Here is the sample of response body for success scenario :

{
  "responseCode":"2002700",
  "responseMessage":"Successful",
  "virtualAccountData":{
    "partnerServiceId":"95962001",
    "customerNo":"00000000001",
    "virtualAccountNo":"9596200100000000001",
    "virtualAccountName":"Jessica Tessalonka",
    "virtualAccountEmail":"jessica@email.com",
    "virtualAccountPhone":"6281828384858",
    "trxId":"INV-20220916-0002",
    "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
    },
    "billDetails":[
      {
        "billCode":"01",
        "billNo":"123456789012345601",
        "billName":"Bill A for Jan",
        "billShortName":"Bill A",
        "billDescription":{
          "english":"Maintenance",
          "indonesia":"Pemeliharaan"
        },
        "billSubCompany":"00001",
        "billAmount":{
          "value":"10000.00",
          "currency":"IDR"
        },
        "additionalInfo":{

        }
      }
    ],
    "freeTexts":[
      {
        "english":"Free text",
        "indonesia":"Tulisan bebas"
      }
    ],
    "virtualAccountTrxType":"1",
    "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
    },
    "expiredDate":"2023-01-01T10:55:00+07:00",
    "additionalInfo":{
    },
      "howToPayInfo":{
        "howToPayPage":"https://sandbox.doku.com/btn-virtual-acccount/v1/how-to-pay-page/0008889912345678901234567890",
        "howToPayApi":"https://api-sandbox.doku.com/btn-virtual-acccount/v1/how-to-pay-api/0008889912345678901234567890"
      }
  }
}
{
  "responseCode": "2002700",
  "responseMessage": "Successful",
  "virtualAccountData": {
    "partnerServiceId": "95962002",
    "customerNo": "00000000001",
    "virtualAccountNo": "9596200200000000001",
    "virtualAccountName": "Jokul Doe 003",
    "virtualAccountEmail": "jokul@email.com",
    "virtualAccountPhone": "6281828384858",
    "trxId": "INV-20220916-0001",
    "totalAmount": {
      "value": "11000.00",
      "currency": "IDR"
    },
    "billDetails": [
      {
        "billCode": "01",
        "billNo": "123456789012345601",
        "billName": "Bill A for Jan",
        "billShortName": "Bill A",
        "billDescription": {
          "english": "Maintenance",
          "indonesia": "Pemeliharaan"
        },
        "billSubCompany": "00001",
        "billAmount": {
          "value": "10000.00",
          "currency": "IDR"
        },
        "additionalInfo": {}
      }
    ],
    "freeTexts": [
      {
        "english": "Free text",
        "indonesia": "Tulisan bebas"
      }
    ],
    "virtualAccountTrxType": "1",
    "feeAmount": {
      "value": "1000.00",
      "currency": "IDR"
    },
    "expiredDate": "2023-01-01T10:55:00+07:00"
  },
    "additionalInfo":{
    },
      "howToPayInfo":{
        "howToPayPage":"https://sandbox.doku.com/btn-virtual-acccount/v1/how-to-pay-page/0008889912345678901234567890",
        "howToPayApi":"https://api-sandbox.doku.com/btn-virtual-acccount/v1/how-to-pay-api/0008889912345678901234567890"
      }
}

Type	Value
HTTP Status	404
Result	FAILED

Here is the sample of response body for failed scenario :

{
   "responseCode":"4042716",
   "responseMessage":"Partner Not Found",
  "virtualAccountData":{
    "partnerServiceId":"95962001",
    "customerNo":"00000000001",
    "virtualAccountNo":"9596200100000000001",
    "virtualAccountName":"Jokul Doe 003",
    "virtualAccountEmail":"jokul@email.com",
    "virtualAccountPhone":"6281828384858",
    "trxId":"INV-20220916-0002",
    "totalAmount":{
      "value":"11000.00",
      "currency":"IDR"
    },
    "billDetails":[
      {
        "billCode":"01",
        "billNo":"123456789012345601",
        "billName":"Bill A for Jan",
        "billShortName":"Bill A",
        "billDescription":{
          "english":"Maintenance",
          "indonesia":"Pemeliharaan"
        },
        "billSubCompany":"00001",
        "billAmount":{
          "value":"10000.00",
          "currency":"IDR"
        },
        "additionalInfo":{

        }
      }
    ],
    "freeTexts":[
      {
        "english":"Free text",
        "indonesia":"Tulisan bebas"
      }
    ],
    "virtualAccountTrxType":"1",
    "feeAmount":{
      "value":"1000.00",
      "currency":"IDR"
    },
    "expiredDate":"2023-01-01T10:55:00+07:00"
      "additionalInfo":{
         "settlement":[
            {
               "bank_account_settlement_id":"SBA-0001-123123123",
               "value":10,
               "type":"PERCENTAGE"
            },{
               "bank_account_settlement_id":"SBS-0002-321321321",
               "value":90,
               "type":"PERCENTAGE"
            }
         ]
      }
   }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
`responseCode`	`string(7)`	Mandatory	Response Code : `HTTP status code + service code + case code`
`responseMessage`	`string(150)`	Mandatory	Response Description
`virtualAccountData.partnerServiceId`	`string(8)`	Mandatory	similar to company code, 8 digit left padding space
`virtualAccountData.customerNo`	String (20)	Optional	Unique number (up to 20 digits). partnerServiceId + customerNo = virtualAccountNo
`virtualAccountData.virtualAccountNo`	String (28)	Optional	partnerServiceId (8 digit left padding 0) + customerNo up to 20 digits).
`virtualAccountData.virtualAccountName`	`string(255)`	Mandatory	Customer Name
`virtualAccountData.virtualAccountEmail`	`string(255)`	Optional	Customer Email
`virtualAccountData.virtualAccountPhone`	`string(30)`	Optional	Customer Phone, Format: 62xxxxxxxxx xxxx
`virtualAccountData.trxId`	`string(64)`	Mandatory	Transaction ID in Partner system
`virtualAccountData.totalAmount.value`	`string(8)`	Optional	Transaction Amount. Total Amount with 2 decimal, format ISO 4217
`virtualAccountData.totalAmount.Currency`	`string(3)`	Optional	Currency. Example: IDR
`virtualAccountData.howToPayInfo.howToPayPage`	ANS(256)	Optional	Step by step that will be used by customer for how to doing a payment
`virtualAccountData.howToPayInfo.howToPayApi`	ANS(256)	Optional	Step by step that will be used by customer for how to doing a payment
`billDetails.billCode`	`string(2)`	Optional	Bill code for Customer choose. Example : 01
`billDetails.billNo`	`string(18)`	Optional	Bill number from Partner
`billDetails.billName`	`string(20)`	Optional	Bill Name
`billDetails.billShortName`	`string(10)`	Optional	Bill Name to shown to
`billDetails.billDescription.english`	`string(18)`	Optional	Bill Description in English
`billDetails.billDescription.indonesia`	`string(18)`	Optional	Bill Description in Bahasa Indonesia
`billDetails.billSubCompany`	string(5)	Optional	Partner’s product code
`billDetails.billAmount.value`	`String (16.2)(ISO 4217)`	Optional	Transaction Amount. Nominal inputted by Customer with 2 decimal
`billDetails.billAmount.currency`	`string(3)`	Optional	Currency
`billDetails.additionalInfo`	`Object(Unlimited)`	Optional	Additional Information for custom use for each bill
`freeTexts.english`	`string(32)`	Optional	This parameter will be shown in Channel
`freeTexts.indonesia`	`string(32)`	Optional	This parameter will be shown in Channel
`virtualAccountTrxType`	`string(1)`	Optional	Type of Virtual Account : `C` : closed payment `O` : open payment
`feeAmount.value`	`String (16.2)`	Optional	Format ISO 4217
`feeAmount.currency`	`string(3)`	Optional	Example : IDR
`expiredDate`	`string(25)`	Optional	Expiration date for Virtual Account. ISO-8601. Example: 2020-12- 31T23:59:59-07:00
`additionalInfo`	`Object`	Optional	Additional Information for custom use

Pro Tips

You can also learn about generatin signature here https://apidevportal.bi.go.id/snap/api-services/keamanan

Pro Tips

You can also show payment instruction link to your customer by using virtual_account_info.how_to_pay_page. If you wish to customize the UI for the payment instruction, you can use the virtual_account_info.how_to_pay_api.

2. Display payment code (virtual account number)

You can display the payment code to your customer by using virtual_account_info.virtual_account_number that you retrieved from the API response.

3. Acknowledge payment result

After the payment is being made by your customer, DOKU will send HTTP Notification to your defined Notification URL. Learn how to handle the notification from DOKU:

Handling DOKU HTTP Notification

Explore the New API Documentation!

Create VA Availability

Process Flow​

Integration Details​

1. BNC VA​

API Request​

API Response​

2. BNI VA​

API Request​

API Response​

3. BTN VA​

info

BTN​

API Response​

Pro Tips

Pro Tips

2. Display payment code (virtual account number)​

3. Acknowledge payment result​

Process Flow

Integration Details

1. BNC VA

API Request

API Response

2. BNI VA

API Request

API Response

3. BTN VA

BTN

API Response

2. Display payment code (virtual account number)

3. Acknowledge payment result
